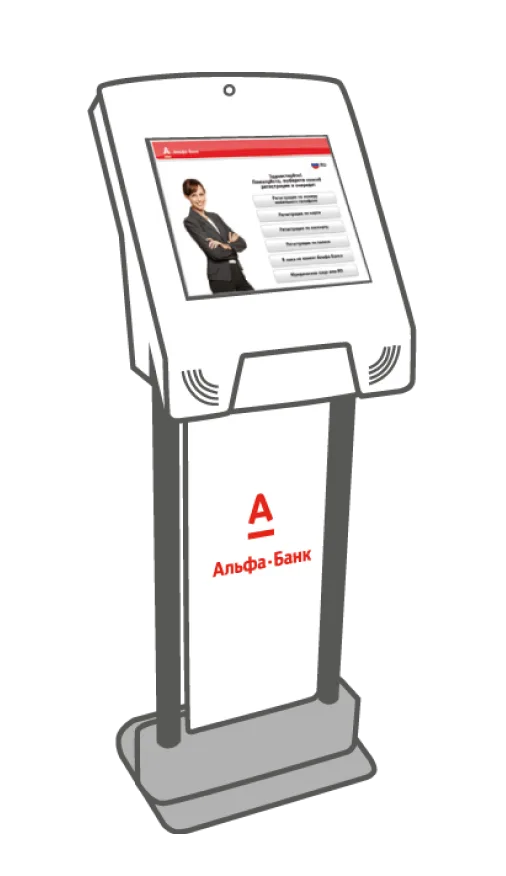

SERVICE REGISTRAR "REGISTRATOR-M-Q2"
It is used to display the service tree and conduct interactive dialogue with visitors, registering them in one or more queues and issuing tickets. The REGISTRATOR-M Q2 service registrar acts as an SUO server and is designed to manage the software and hardware complex, ensuring the exchange of information between system components.
The QSOLT Q2 MINI device registry performs the role of the POS server and serves as the primary tool for managing the software-hardware system components.
Touchscreen, liquid crystal, color (displays 16.7 million colors), size 19 inches, horizontal orientation, pixel resolution 1280*1024 pixels, aspect ratio 5:4; built-in uninterruptible power supply; thermal printer; thermal tape 80x80x26 mm – 80x120x26 mm; control PC (nettop) Qsolt Intel Celeron 2.0 GHz, RAM 4 Gb DDR3 1600MHz, 64GB SSD, Intel HD Graphics, operating system – Windows 10; 4xRS232, 2xLAN, HDMI, VGA, USB 3.0; recorder dimensions (with floor mount) WxDxH, mm: 498x405x1430 mm; power supply 220 V/50 Hz; body color – white, body material – metal; key access; operating mode – 24/7.
Optional expansions
Example
QSOLT Q2 MINI 10 SERVICE REGISTRAR
Registers visitors in one or more queues with ticket issuance and supports the selection of services for subsequent routing of an unlimited number of users.
Requires a separate SUO server.
Touchscreen, liquid crystal, color (displays 16.7 million colors), size 19 inches, horizontal orientation, pixel resolution 1280*1024 pixels, aspect ratio 5:4; built-in uninterruptible power supply; thermal printer; thermal tape 80x80x26 mm – 80x120x26 mm; control PC (nettop) Qsolt: Intel Celeron 2.0 GHz, RAM 4 Gb DDR3 1600MHz, 32GB SSD, Intel HD Graphics, operating system – Windows 10; 4xRS232, 2xLAN, HDMI, VGA, USB 3.0; recorder dimensions (with floor mount) WxDxH, mm: 498x405x1430 mm; power supply 220 V/50 Hz; body color – white, body material – metal; key access; operating mode – 24/7.
CENTRAL INFORMATION BOARD. LCD TYPE
The central display allows you to: inform customers about the status and movement of the current queue, notify customers of important information, broadcast slideshows, audio, video, photo, advertising materials, or TV channels in high resolution, weather widgets, traffic jams, news blocks, currency rates, and scrolling text.
Liquid crystal display: diagonal from 43 inches (16:9 format), screen resolution 1920x1080 pixels, Full HD, viewing angle of at least 170 degrees vertically and horizontally, brightness of 300 cd/m2, contrast ratio of 1000:1, black casing, 2 HDMI ports. Body color – black/white, body finish – plastic; operating mode – 10/6 or 24/7 (depending on model).
example
CENTRAL (GRAPHICAL) DISPLAY CONTROL UNIT OPTION: NETTOP
Designed to display visual information on a central information board of any size and to provide audio support for the queue management system.
It can act as an SUO server and is designed to manage the software and hardware complex, ensuring information exchange between system components.
Intel Celeron 2.0 GHz; RAM 4 GB DDR3 1600 MHz; 32 GB SSD; Intel HD Graphics; operating system – Windows 10; 4xRS232, 2xLAN, HDMI, VGA, USB 3.0; case color – black, case finish – metal (aircraft aluminum); dimensions WxDxH, mm – 135x128x45 mm; industrial solution; operating mode – 24/7.
CENTRAL (GRAPHICAL) DISPLAY CONTROL UNIT OPTION: ANDROID
Designed to display visual information on a central information board of any size and to provide audio support for the queue management system.
AML S905X Quad-Core ARM Cortex-A53 до 2ГГц; ОЗУ 2 ГБ DDR3; 16GB SSD; Penta-Core ARM Mali-450; 4K; Android 6; 2хUSB2.0, SD/SDHC/MMC, HDMI, LAN, WiFi.
CENTRAL PANEL MOUNTING
Designed for mounting a graphic central display board.
Mounting options: wall-mounted, ceiling-mounted, swivel, paired; VESA type.
Qsolt TO-RGB POE OPERATOR PANEL
The operator display is installed in the customer service area at each operator's workstation and is used to display the number of the customer being called for service in the current window (to the operator), as well as the service window number.
Display type: LED, RGB color, with the ability to simultaneously display information in two-color mode; matrix size: 32x64 dots; interface: 100M PoEat; power consumption: no more than 25 W; supply voltage: 36-57V IEE802.3at; dimensions WxDxH, mm – 333x174x38 mm; mounting – wall-mounted (mounting hardware included), ceiling-mounted, and tabletop-mounted (requires specialized mounting hardware); operating mode – 24/7.
SUO Qsolt RGB POE SWITCH
Used to connect components of the Qsolt Q2 TO-RGB POE operator panel and the SUO server.
Type - unmanaged switch, 8 ports / 24 ports 10/100Base-TX with PoE 802.3af/802.3at support (30 W), PoE budget 140 W.
sample
SUO Qsolt 16-port concentrator
Used for switching between components of the control system.
Type - unmanaged switch, 10 ports 10/100Base-TX.
sample
AUDIO ANNOUNCEMENT SUO Qsolt
Designed to organize audio accompaniment for work and output audio accompaniment for SUO events: gong, voice, gong/voice, custom sound file in rooms larger than 80 square meters.
Display type: LED, RGB color, with the ability to simultaneously display information in two-color mode; matrix size: 32x64 dots; interface: 100M PoEat; power consumption: no more than 25 W; supply voltage: 36-57V IEE802.3at; dimensions WxDxH, mm – 333x174x38 mm; mounting – wall-mounted (mounting hardware included), ceiling-mounted, and tabletop-mounted (requires specialized mounting hardware); operating mode – 24/7.
SOKOK SUO Qsolt (WIRED)
Customer service quality assessment system based on two-button wired remote controls.
SOKOK hub - RS 485, 12 ports.
SOKOK remote control – 2 buttons.
sample
SOKOK QIS SUO Qsolt (WIRELESS)
Customer service quality assessment system based on two-button wireless remote controls.
QIS hub – LDP433.
QIS radio buttons – 2-, 3- and 5-button variants available.
sample
SOKOK/AsQ CONTROL PANEL (TABLET)
A solution based on a tablet running Android OS and AsQ software can be used to conduct random surveys or obtain visitor service quality assessments.
Screen: 7“, 10.1”, 1920x1200; Built-in memory: 32 GB; microSDXC slot; OS: Android 9.0; RAM: 2 GB; Processor: 8-core Samsung; Wireless interfaces: Wi-Fi, Bluetooth; Dimensions: 149.4x245.2x7.5 mm, weight: 480 g; Battery: 6,150 mAh.
sample
HARDWARE CONTROL PANEL (wired)
The hardware operator console is designed to enable employees to work without using a personal computer or connecting a PC to the PAC SUO network.
Full-color TFT display with a diagonal of 2.8", numeric keypad with 10 keys, general keyboard with 18 keys, connection interface – RJ11/RJ45, power supply 24 volts, power consumption 2W.
example
HARDWARE CONTROL PANEL (wireless)
An Android tablet PC can be used as a wireless hardware operator console for the PAC SUO. This solution allows you to enjoy all the advantages of a hardware operator console while also being able to use the full functionality of the software operator console.
Screen: 7“, 10.1”, 1920x1200; Built-in memory: 32 GB, microSDXC slot; OS: Android 9.0; RAM: 2 GB; Processor: 8-core Samsung; Wireless interfaces: Wi-Fi, Bluetooth; Dimensions: 149.4x245.2x7.5 mm, weight: 480 g; Battery: 6,150 mAh.
example
